T25x50 Enclosed Cable Plastic Drag Chain Towing Carrier Tow Chain

Name: T25x50 Enclosed Cable Plastic Drag Chain Towing Carrier Tow Chain
Brand: DOWE
Price: 1 USD

T25x50 Enclosed Cable Plastic Drag Chain Towing Carrier Tow Chain Manufactures

Brand Name : DOWE

Model Number : T25X50

Certification : CE,SGS

Place of Origin : CHINA

MOQ : 1piece

Price : USD1-99

Payment Terms : Western Union, MoneyGram, L/C, T/T

Supply Ability : 1000/DAY

Delivery Time : 5-8DAYS

Packaging Details : CARTON

Name : tow chain

Product Name : T25 tow chain

inner diameter : 25mm*50mm

outer diameter : 36mm*65mm

Function : machine tool accessories

Bend radius : R40/R55/R100/R125/R150/R175

Temperature range : -40 ~125

Material : PA66

Contact Now

T25x50 Enclosed Cable Plastic Drag Chain Towing Carrier Tow Chain

Plastic cable tow chain are designed to protect and convey cables,water pipes and air hoses on machine tools,robots and materials handling equipment.Nylon bridge cable chain threading is suitable for all kinds of small machanical equipmeng use,for wire ,cable,tubing,the trachea and conduit traction and protection.It is impact resistant with high strength and light in weight.The sturdy structure makes it not liable to distort.

Product Description

Product Name	Plastic Tow Chain
Brand	DOWE
Model	25 tow chain
Material	PA66
Inner Diameter	25mm*50mm
Outer Diameter	35mm*65mm
Color	black
Sample	sample fee refund from 1st order
Bengding Radius	R55/R75/R100/R125/R150/R175
Application	Machine Tool Accessories
Certification	CE,SGS
Operating Temperature	-40℃~125℃
Place of Origin	China

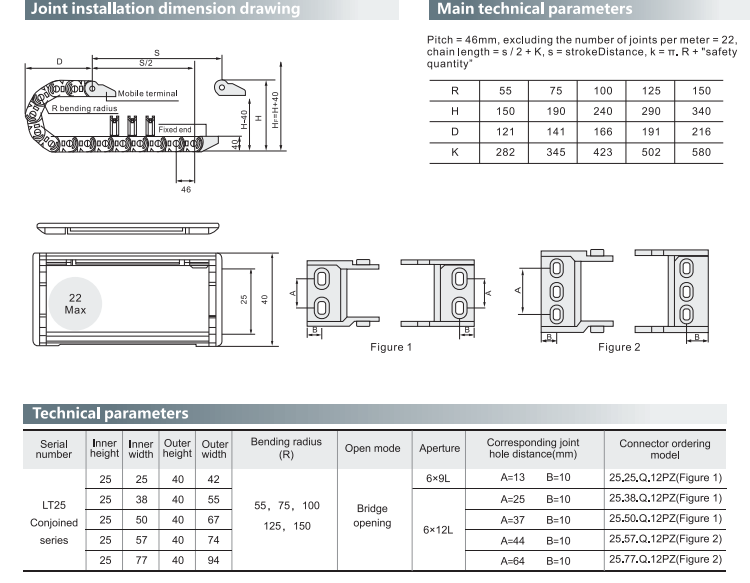

T25 R40 R55 R75 R100 R125 R150 R175

Inner H*D

25*25

25*38

25*50

25*57

25*60

25*77

25*103

Outer H*D

36*40

36*53

36*65

36*72

36*75

36*92

36*118

Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment

T25x50 Enclosed Cable Plastic Drag Chain Towing Carrier Tow Chain

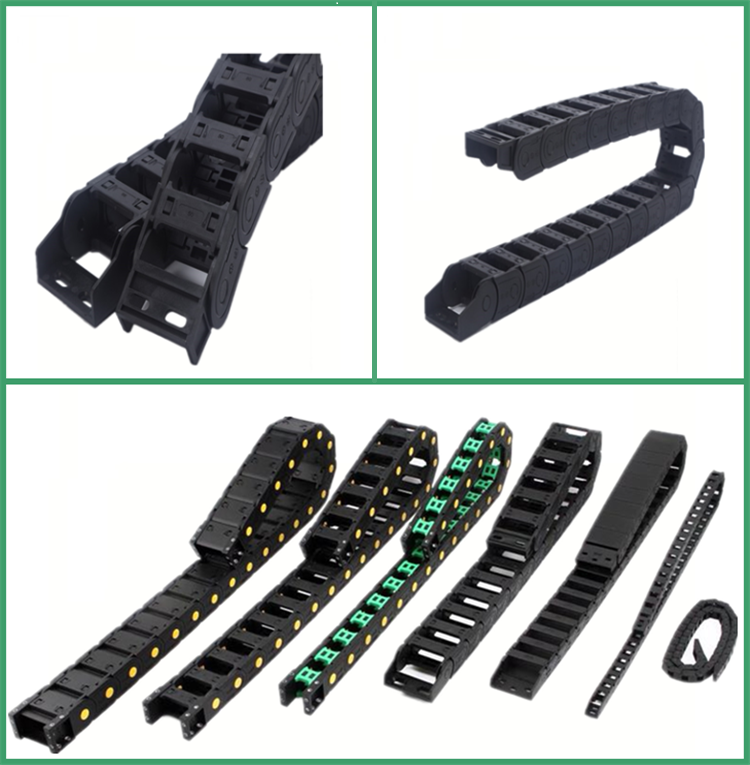

T25x50 Enclosed Cable Plastic Drag Chain Towing Carrier Tow Chain Images
